Mixing Paddles

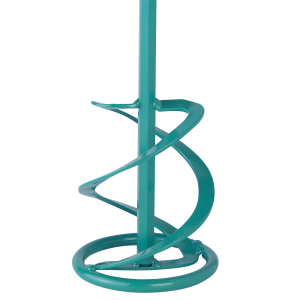

Mixing paddle WK

Ideal for all sticky and viscous materials

Mixing Paddle Wk

Suitable for:

  • All kinds of mortar
  • Screed
  • Plastering mortar
  • Tile adhesives
  • Synthetic resin mortar
  • Grout

Suitable for diverse applications, the WK mixing paddle is notable for outstanding conveyance of the material. With two wide mixing helixes for easy guidance in the material and minimal stress on the drive machine.

Article number Product Mixing quantity Diameter Connection GLN
41100-000 Mixing tool WK 70 S turquoise 4 - 7 Litres 70mm 10 mm 4011024411006
41200-000 Mixing tool WK 90 S turquoise 7 - 10 Litres 90mm 10 mm 4011024412003
41207-000 Mixing tool WK 90/500 S turquoise 7 - 10 Litres 90mm 10 mm 4011024412072
41258-000 Mixing tool WK 100 S turquoise 10 - 15 Litres 100mm 13 mm 4011024412584
41250-000 Mixing tool WK 120 S turquoise 10 - 15 Litres 120mm 13 mm 4011024412508
40112-000 Mixing tool WK 120 HF turquoise 10 - 15 Litres 120mm HEXAFIX® 4011024401120
40113-000 Mixing tool WK 140 HF turquoise 15 - 30 Litres 135mm HEXAFIX® 4011024401137
40123-000 Mixing tool WK 160 HF turquoise 30 - 50 Litres 160mm HEXAFIX® 4011024401236
41269-000 Mixing tool WK 120 M turquoise 10 - 15 Litres 120mm M 14 4011024412690
41319-000 Mixing tool WK 140 M turquoise 15 - 30 Litres 135mm M 14 4011024413192

Mixing paddles MK

Ideal for heavy and high viscous materials

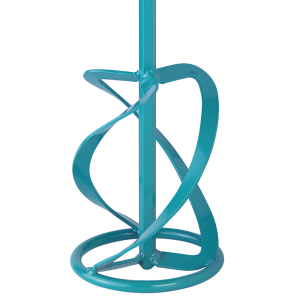

Mk Hf

Suitable for:

  • All types of mortars
  • Screed
  • Plaster
  • Tile adhesives
  • Grout
  • Concrete
  • Quartz-filled epoxy

The professional mixing paddle MK – specially developed for tough service on the building site. With three mixing blades for fast working with high shear forces, for thorough mixing results. It requires the use of a suitably dimensioned drive machine. Featuring particularly high-quality workmanship and high-grade steel for a long life, even with abrasive materials. MK = positive upwards mixing direction.

Article number Product Mixing quantity Diameter Connection GLN
41700-000 Mixing tool MK 100 S turquoise 5 - 15 Litres 100mm 13 mm 4011024417008
40114-000 Mixing tool MK 120 HF turquoise 15 - 25 Litres 120mm HEXAFIX® 4011024401144
40115-000 Mixing tool MK 140 HF turquoise 25 - 40 Litres 135mm HEXAFIX® 4011024401151
40116-000 Mixing tool MK 160 HF turquoise 30 - 60 Litres 160mm HEXAFIX® 4011024401168
41719-000 Mixing tool MK 120 M turquoise 15 - 25 Litres 120mm M 14 4011024417190
41749-000 Mixing tool MK 140 M turquoise 25 - 40 Litres 135mm M 14 4011024417497
41759-000 Mixing tool MK 160 M turquoise 30 - 60 Litres 160mm M 14 4011024417596

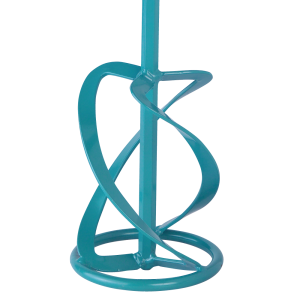

Mixing paddles MKN

Ideal for liquid and fibrous materials

Mkn Hf

Suitable for:

  • Gypsum plaster
  • Wall paints
  • Dispersions
  • Groutings

Rugged professional mixing paddle MKN with three mixing blades, anticlockwise rotating, Large volumes possible, without splashing. For high power machines only, as machine loads are high. MKN = negative downwards mixing direction.

Article number Product Mixing quantity Diameter Connection GLN
40117-000 Mixing tool MKN 120 HF turquoise 15 - 25 Litres 120mm HEXAFIX® 4011024401175
40118-000 Mixing tool MKN 140 HF turquoise 25 - 40 Litres 135mm HEXAFIX® 4011024401182
40119-000 Mixing tool MKN 160 HF turquoise 30 - 60 Litres 160mm HEXAFIX® 4011024401199
41724-000 Mixing tool MKN 120 M turquoise 15 - 25 Litres 120mm M 14 4011024417244
41754-000 Mixing tool MKN 140 M turquoise 25 - 40 Litres 135mm M 14 4011024417541
41758-000 Mixing tool MKN 160 M turquoise 30 - 60 Litres 160mm M 14 4011024417589

Mixing paddles MM

The optimal mixing tool for small volumes of tile adhesives, ready-­mixed mortars and pointing mortars, etc.

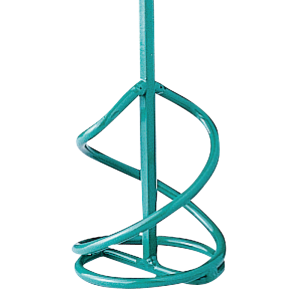

Mm S

Suitable for:

  • Tile adhesive
  • Grout
  • Mortar

The MM mixing paddle is the optimum solution for the homogenization of small volumes (up to 15 kg) of light, powdery materials. The special round steel shape provides a notably smooth mixing action making it ideal for power drills. With a guide ring for extra tub protection.

Article number Product Mixing quantity Diameter Connection GLN
41650-000 Mixing tool MM 85 S turquoise 5 - 10 Litres 85mm 10 mm 4011024416506

Mixing paddles DLX

Ideal for leveling compounds and liquid materials

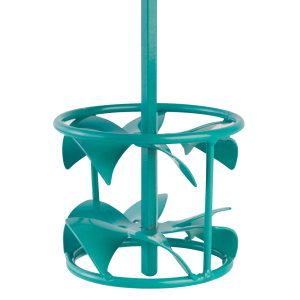

Dlx Hf

Suitable for:

  • Leveling compounds
  • Thin-bed mortar
  • Liquid coverings
  • Bitumen-free sealing

The DLX mixing paddle was specially developed for the optimum preparation of thin-bed mortar for the cementing of concrete precision blocks. The two turbine blades, fitted one above the other, provide a strong flow of material to prevent the formation of lumps.

Article number Product Mixing quantity Diameter Connection GLN
40128-000 Mixing tool DLX 90 S turquoise 10 - 15 Litres 90mm 13 mm 4011024401281
40109-000 Mixing tool DLX 120 HF turquoise 20 - 40 Litres 120mm HEXAFIX® 4011024401090
40983-000 Mixing tool DLX 152 HF turquoise 40 - 65 Litres 150mm HEXAFIX® 4011024409836
40974-000 Mixing tool DLX 120 M turquoise 20 - 40 Litres 120mm M 14 4011024409744
40984-000 Mixing tool DLX 152 M turquoise 40 - 65 Litres 150mm M 14 4011024409843

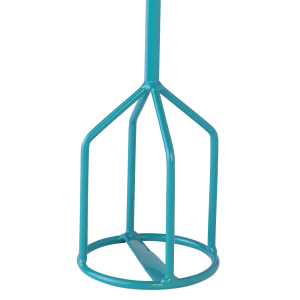

Mixing paddles KR

Ideal for all sticky materials

Kr Hf

Suitable for:

  • Flooring fillers
  • Cement
  • Sealing coumpound
  • Tile adhesives

The KR mixing paddle generates high shear forces which prevent the formation of lumps and ensure that the material is homogenized quickly. The crossbar helps scrape material cleanly off the bottom of the tub. The mixing tool has good corner smoothness in the tub. Easy to clean because material hardly sticks.

Article number Product Mixing quantity Diameter Connection GLN
41621-000 Mixing tool KR 90 S turquoise 5 - 15 Litres 90mm 13 mm 4011024416216
41630-000 Mixing tool KR 120 S turquoise 15 - 25 Litres 120mm 13 mm 4011024416308
40120-000 Mixing tool KR 120 HF turquoise 15 - 25 Litres 120mm HEXAFIX® 4011024401205
40121-000 Mixing tool KR 140 HF turquoise 20 - 35 Litres 140mm HEXAFIX® 4011024401212
40122-000 Mixing tool KR 160 HF turquoise 35 - 50 Litres 160mm HEXAFIX® 4011024401229
41631-000 Mixing tool KR 120 M turquoise 15 - 25 Litres 120mm M 14 4011024416315
41635-000 Mixing tool KR 140 M turquoise 20 - 35 Litres 140mm M 14 4011024416353
41636-000 Mixing tool KR 160 M turquoise 35 - 50 Litres 160mm M 14 4011024416360

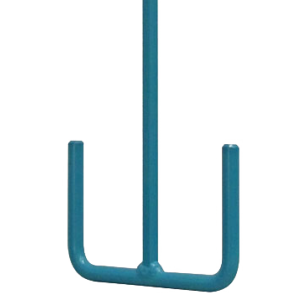

Mixing paddles AR

Ideal for bitumen sealants

Ar Hf S

Suitable for:

  • Bitumen coatings
  • Bituminous fillers

The AR mixing paddle generates high shear forces which prevent the formation of lumps. The mixing paddle supports a good material removal from the bottom and rim of the tub. Easy to clean because material hardly sticks.

Article number Product Mixing quantity Diameter Connection GLN
40129-000 Mixing tool AR 90 S turquoise 10 - 15 Litres 90mm 10 mm 4011024401298
40140-000 Mixing tool AR 170 HF turquoise 25 - 30 Litres 170mm HEXAFIX® 4011024401403
40141-000 Mixing tool AR 170 M turquoise 25 - 30 Litres 170mm M 14 4011024401410

Mixing paddles DMR

Ideal for mixing sealants

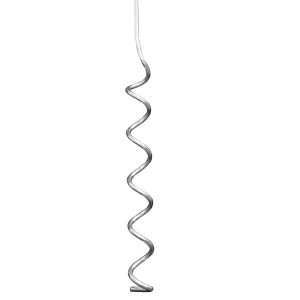

Drm

Suitable for:

  • 2K-PUR-coatings
  • Sealant compounds
  • Adhesives

Special spiral stirrer DMR for effortless mixing directly in cartridges

Article number Product Mixing quantity Diameter Connection GLN
40148 Mixing tool DMR 40 S galvanised 0 - 5 Litres 45mm 10 mm 4011024401489

Mixing paddles KRK

Ideal for fluid and solven­t-­con­taining materials

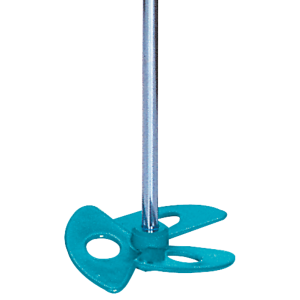

Krk

Suitable for:

  • Paints
  • Lacquers
  • Glazings
  • Primers

The KRK mixing paddle with a plastic propeller and galvanized shaft is particularly suitable for small volumes (up to 15 kg) of material, including aggressive substances. It swirls the material with a powerful suction effect, without splashing. Optimal flow conditions when used with high-speed drives (e.g. power drills)

Article number Product Mixing quantity Diameter Connection GLN
40000-000 Mixing tool KRK 60 turquoise 0 - 5 Litres 60mm 10 mm 4011024400000
40005-000 Mixing tool KRK 80 S turquoise 5 - 15 Litres 80mm 10 mm 4011024400055

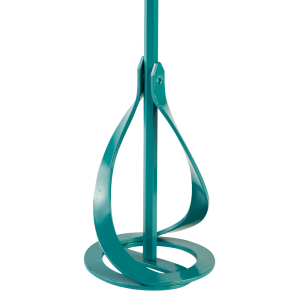

Mixing paddles FM

Ideal for fluid materials

Fm Hf S

Suitable for:

  • Paints
  • Lacquers
  • Primers
  • Fine and creamy plasters

The classical paint stirrer, the FM is a highly versatile tool for use with average machine loads. This mixing tool is ideal for both DIY and professional use.

Article number Product Mixing quantity Diameter Connection GLN
40880-000 Mixing tool FM 60 S turquoise 0 - 5 Litres 60mm 10 mm 4011024408808
40881-000 Mixing tool FM 80 S turquoise 5 - 10 Litres 80mm 10 mm 4011024408815
40882-000 Mixing tool FM 100 S turquoise 10 - 25 Litres 100mm 13 mm 4011024408822
40883-000 Mixing tool FM 120 S turquoise 20 - 30 Litres 120mm 13 mm 4011024408839
40102-000 Mixing tool FM 120 HF turquoise 20 - 30 Litres 120mm HEXAFIX® 4011024401021
40884-000 Mixing tool FM 100 M turquoise 10 - 25 Litres 100mm M 14 4011024408846
40886-000 Mixing tool FM 120 M turquoise 20 - 30 Litres 120mm M 14 4011024408860

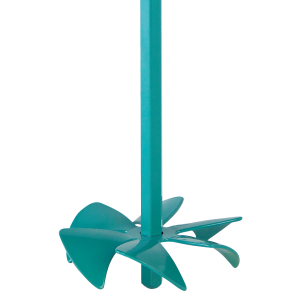

Mixing paddles LX

Ideal for liquid and spreading materials

Lx Hf

Suitable for:

  • Paints
  • Primer Coats
  • Epoxy-resins

The unique design of the LX turbo mixing paddle generates a powerful flow in the material for optimum results in super-fast time. The LX mixing tool lets you work effortlessly, with minimum physical strain

Article number Product Mixing quantity Diameter Connection GLN
40950-000 Mixing tool LX 90 S turquoise 5 - 15 Litres 90mm 10 mm 4011024409508
40960-000 Mixing tool LX 120 S turquoise 15 - 25 Litres 120mm 13 mm 4011024409607
40108-000 Mixing tool LX 120 HF turquoise 15 - 25 Litres 120mm HEXAFIX® 4011024401083
40970-000 Mixing tool LX 120 M turquoise 15 - 25 Litres 120mm M 14 4011024409706

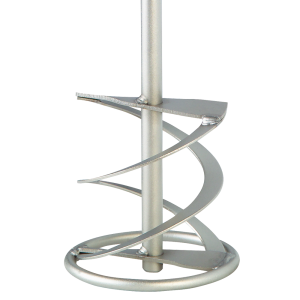

Mixing paddles NIROSTA

STAINLESS STEEL (NIROSTA) mixing paddles

Nirosta Wk

Suitable for:

  • For abrasive materials

The STAINLESS STEEL (NIROSTA) mixing paddles are long lasting and able to cope with high loads; they are therefore particularly suitable for abrasive materials.

Article number Product Mixing quantity Diameter Connection GLN
40205 Mixing tool RK 120 S-N 15 - 30 Litres 120mm 13 mm 4011024402059
41255 Mixing tool WK 120 S-N 10 - 15 Litres 120mm 13 mm 4011024412553
41278 Mixing tool WK 120 -N 10 - 15 Litres 120mm M 14 4011024412782
41769 Mixing tool MK 140-N 25 - 40 Litres 135mm M 14 4011024417695

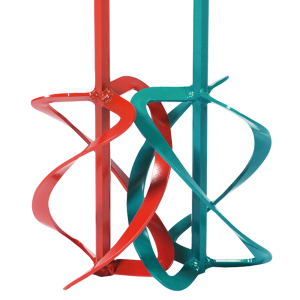

Mixing paddles MKD

All viscosities can be mixed

Mkd

Suitable for:

  • All materials and viscosities

MKD paddles especially for Xo du hand-held mixers are interchangeable to enable the mixing action to be controlled; all viscosities can be mixed.

Article number Product Mixing quantity Diameter Connection GLN
44060 Paddles MKD 100 HF, 1 pair 10 - 30 Litres 100mm HEXAFIX® 4011024440600
44070 Paddles MKD 120 HF, 1 pair 20 -50 Litres 120mm HEXAFIX® 4011024440709
44080 Paddles MKD 140 HF, 1 pair 40 -90 Litres 210mm HEXAFIX® 4011024440808
